Galvanized Tension Springs
Material Type: Galvanised Spring Steel
Range 2. Eye Each End.
More technical information can be found here
Can’t find the size you want? Get a quote here
$27 Flat-rate Delivery & Handling
Click on table headings to sort items in ascending/descending order
*Values are approximate (where applicable)

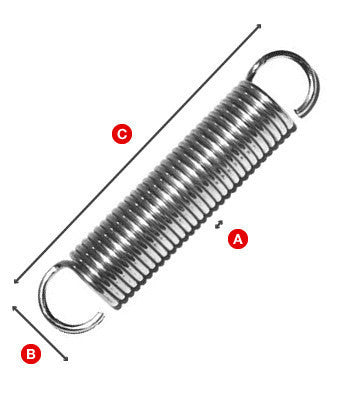

| A Wire | B O/D | C Overall Length |
KG/mm* | Part Number |
Price | Qty |
|---|---|---|---|---|---|---|
| 1.25 | 12 | 60 | 0.07 | T512 | $12.06 | |
| 1.25 | 12 | 100 | 0.03 | T513 | $12.06 | |
| 1.4 | 12 | 60 | 0.13 | T514 | $14.06 | |
| 1.4 | 12 | 100 | 0.06 | T515 | $14.06 | |
| 1.6 | 14 | 70 | 0.13 | T516 | $14.06 | |
| 1.6 | 14 | 115 | 0.06 | T517 | $14.06 | |
| 2 | 16 | 80 | 0.18 | T518 | $16.06 | |
| 2 | 16 | 120 | 0.13 | T519 | $16.06 | |
| 2.24 | 18 | 80 | 0.31 | T520 | $16.06 | |
| 2.24 | 18 | 120 | 3.17 | T521 | $16.06 | |
| 2.8 | 20 | 100 | 0.58 | T522 | $18.07 | |
| 2.8 | 25 | 125 | 0.21 | T523 | $18.07 | |
| 3.15 | 25 | 100 | 0.46 | T524 | $18.07 | |
| 3.15 | 25 | 150 | 0.3 | T525 | $18.07 | |
| 3.55 | 30 | 160 | 0.31 | T526 | $18.07 | |
| 3.55 | 30 | 200 | 0.22 | T527 | $18.07 | |
| 4 | 30 | 150 | 0.64 | T528 | $20.08 | |
| 4 | 30 | 250 | 0.31 | T529 | $20.08 | |
| 1 | 9.2 | 45 | 0.07 | T536 | $12.06 | |
| 1 | 9.3 | 73 | 0.03 | T537 | $12.06 | |
| 2.5 | 15.5 | 100 | 0.64 | T763 | $16.06 | |
| 2.5 | 15.5 | 55 | 0.8 | T764 | $16.06 | |
| 2.5 | 14.5 | 44 | 1.81 | T765 | $16.06 | |
| 1 | 10.6 | 43 | 0.05 | T799 | $12.06 | |
| 1 | 10.6 | 68 | 0.02 | T800 | $12.06 | |
| 1 | 9.2 | 30 | 0.15 | T825 | $12.06 | |
