Stainless Steel Compression Springs

Material Type: 304 Stainless Steel Wire
Ends Closed Not Ground.

More technical information can be found here

Can’t find the size you want? Get a quote here

$27 Flat-rate Delivery & Handling

Click on table headings to sort items in ascending/descending order
*Values are approximate (where applicable)

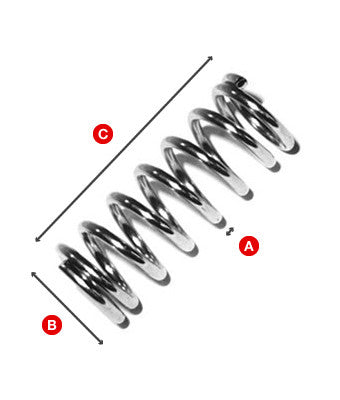

A Wire	B O/D	C Overall Length	No. of coils*	KG/mm*	Part Number	Price	Qty
0.32	4	12.7	18	0.01	C629	$10.03
0.32	6	20	28	0.01	C630	$10.03
0.56	6	19	11	0.06	C631	$10.03
0.56	6	38	22	0.03	C632	$10.03
0.61	6	19	11	0.09	C633	$10.03
0.61	6	38	22	0.04	C634	$10.03
0.71	8	20	11	0.06	C635	$10.03
0.9	9	25.4	7	0.22	C636	$12.06
1	8	25.4	10	0.32	C637	$12.06
1.25	10	25.4	8	0.53	C638	$12.06
1.25	12.7	40	14	0.12	C639	$12.06
1.4	16	25.4	7	0.22	C640	$14.06
1.4	18	35	12	0.07	C641	$14.06
1.6	12.7	25	10	0.53	C642	$14.06
1.6	16	40	15	0.15	C643	$14.06
1.6	16	60	18	0.12	C644	$14.06
2	18	30	8	0.57	C645	$16.06
2	20	30	8	0.4	C646	$16.06
2	20	45	12	0.24	C647	$16.06
2.24	19	50	8	0.78	C648	$16.06
2.24	19	100	16	0.34	C649	$16.06
2.24	25.4	50	8	0.3	C650	$16.06
2.5	25.4	40	7	0.57	C651	$16.06
2.5	25.4	100	15	0.22	C652	$16.06
2.5	32	60	12	0.13	C653	$16.06
2.8	25.4	100	14	0.39	C654	$18.07
3.15	30	60	10	0.56	C655	$18.07
3.15	35	100	15	0.21	C656	$18.07
4	28	61	9	2.32	C705	$20.08
0.45	3.8	7.4	7	0.19	C737	$10.03
0.8	6.8	18	8	0.28	C739	$12.06
0.8	7.5	26	9	0.17	C740	$12.06
0.35	5	51	32	0.01	C743	$10.03
1	12.5	37	9	0.11	C746	$12.06
1.4	14.6	12	4	0.73	C776	$14.06
2.8	33.5	20	4	0.93	C778	$18.07
0.45	6.5	40	15	0.01	C781	$10.03
1	12.6	38	9	0.05	C783	$12.06
0.8	18.3	27	7	0.01	C784	$12.06
1.25	8	17	7	1.39	C786	$12.06
0.9	25	60	12	0.01	C789	$12.06
0.61	4.3	42	31.5	0.08	C792	$10.03
0.45	5	6.5	4	0.19	C797	$10.03
0.8	16	33	6	0.03	C823	$10.03
0.4	5	12.7	9	0.03	C831	$10.03
0.4	6	25.4	16	0.01	C832	$20.08
0.4	4	12.7	10.25	0.06	C833	$10.03
0.32	5	25.4	18	0.01	C834	$10.03
0.5	6	12.7	7.5	0.06	C835	$10.03
0.71	7	12.7	6.5	0.2	C836	$10.03
0.5	7	25.4	12	0.02	C837	$10.03
0.71	8	25.4	10	0.07	C838	$10.03
