Stainless Steel Tension Springs
Material Type: 304 Stainless Steel
Spring Wire Eye Each End.
More technical information can be found here
Can’t find the size you want? Get a quote here
$27 Flat-rate Delivery & Handling
Click on table headings to sort items in ascending/descending order
*Values are approximate (where applicable)

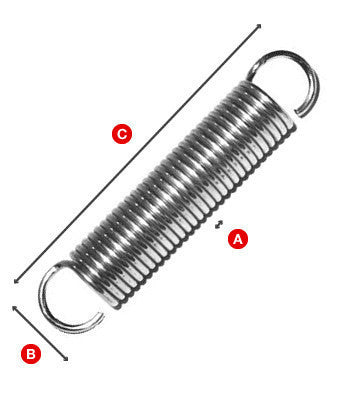

| A Wire | B O/D | C Overall Length |
KG/mm* | Part Number |
Price | Qty |
|---|---|---|---|---|---|---|
| 0.61 | 6 | 80 | 0.01 | T500 | $10.03 | |
| 0.71 | 7 | 35 | 0.03 | T501 | $10.03 | |
| 0.71 | 7 | 50 | 0.02 | T502 | $10.03 | |
| 0.71 | 8 | 70 | 0.01 | T503 | $10.03 | |
| 0.8 | 7 | 35 | 0.06 | T504 | $12.06 | |
| 0.8 | 8 | 50 | 0.02 | T505 | $12.06 | |
| 0.8 | 8 | 70 | 0.01 | T506 | $12.06 | |
| 0.9 | 9 | 50 | 0.03 | T507 | $12.06 | |
| 0.9 | 9 | 80 | 0.02 | T508 | $12.06 | |
| 1 | 9 | 45 | 0.06 | T509 | $12.06 | |
| 1 | 9 | 70 | 0.03 | T510 | $12.06 | |
| 1 | 9 | 100 | 0.02 | T511 | $12.06 | |
| 0.35 | 3 | 25.4 | 0.01 | T691 | $10.03 | |
| 0.35 | 4 | 25.4 | 0.01 | T692 | $10.03 | |
| 0.5 | 4 | 25.4 | 0.04 | T693 | $10.03 | |
| 0.5 | 6 | 50 | 0.01 | T694 | $10.03 | |
| 0.56 | 5 | 25.4 | 0.04 | T695 | $10.03 | |
| 0.56 | 5 | 40 | 0.02 | T696 | $10.03 | |
| 0.56 | 6 | 50 | 0.01 | T697 | $10.03 | |
| 0.61 | 6 | 30 | 0.03 | T698 | $10.03 | |
| 0.61 | 6 | 50 | 0.01 | T699 | $10.03 | |
| 0.35 | 5 | 25.4 | 0.01 | T802 | $10.03 | |
| 0.4 | 5 | 25.4 | 0.01 | T803 | $10.03 | |
| 0.4 | 6 | 25.4 | 0.01 | T804 | $10.03 | |
| 0.5 | 6 | 25.4 | 0.01 | T805 | $10.03 | |
| 0.4 | 7 | 25.4 | 0.01 | T806 | $10.03 | |
