Zinc Plated Compression Springs

Material Type: Spring Steel Range 2
Ends Closed Not Ground.

More technical information can be found here

Can’t find the size you want? Get a quote here

$27 Flat-rate Delivery & Handling

Click on table headings to sort items in ascending/descending order
*Values are approximate (where applicable)

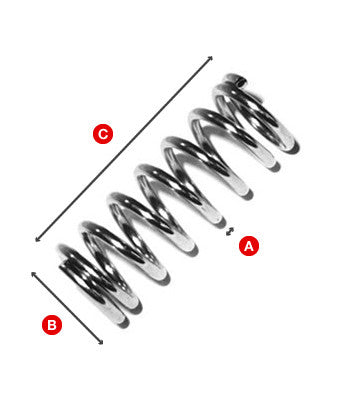

A Wire	B O/D	C Overall Length	No. of coils*	KG/mm*	Part Number	Price	Qty
0.5	4.7	20	10	0.01	C600	$10.03
0.56	4.5	25	15	0.12	C601	$10.03
0.56	6	38	22	0.03	C602	$10.03
0.56	7.9	38	12	0.03	C603	$10.03
0.56	7.9	19	8	0.04	C604	$10.03
0.61	6	19	11	0.1	C605	$10.03
0.61	6	38	22	0.04	C606	$10.03
0.71	7.9	25	11	0.08	C607	$10.03
0.8	10	25	10	0.07	C608	$12.06
0.9	9.5	19	7	0.21	C609	$12.06
1	10	19	7	0.28	C610	$12.06
1	10	25	9	0.2	C611	$12.06
1	10	38	14	0.12	C612	$12.06
1.6	12.7	25	10	0.6	C613	$14.06
1.8	16	25	6	0.93	C614	$14.06
1.8	16	60	14	0.31	C615	$14.06
2	20	30	8	0.46	C616	$16.06
2.24	19	50	8	0.9	C617	$16.06
2.24	19	100	16	0.39	C618	$16.06
2.24	25	200	35	0.049	C619	$16.06
2.8	25.4	100	14	0.45	C620	$18.07
3.15	25.4	100	13	0.82	C621	$18.07
4	31.8	100	12	1.2	C622	$20.08
4.5	37	150	17	0.8	C623	$20.08
5	40	100	8	2.45	C624	$30.12
5	40	150	12	1.47	C625	$30.12
5	50	200	15	0.53	C626	$30.12
5.6	50	100	8	1.89	C627	$30.12
5.6	50	150	11	1.26	C628	$30.12
3.15	50	73	5	0.32	C702	$18.07
4.5	37	61	6	3.02	C703	$20.08
3.55	43.5	50	4.5	1.01	C704	$18.07
3.55	37.5	40	4.8	1.46	C708	$18.07
2.5	25	51	9.5	0.46	C709	$16.06
4.5	25	37	5.25	14.79	C710	$20.08
0.56	4.5	10	6	0.41	C738	$10.03
1.4	8	26	9.5	1.8	C741	$14.06
1.25	9.2	32	13	0.45	C742	$12.06
0.8	10	13	5	0.18	C744	$12.06
1	8.7	11	4.25	0.98	C745	$12.06
1.6	13.7	60	13	0.34	C748	$14.06
1.4	15.2	60	13	0.13	C749	$14.06
2.5	15.2	52	9.5	2.57	C750	$16.06
2	16.5	60	12.5	0.5	C751	$16.06
1.6	13.5	73	17	0.26	C752	$14.06
1.25	10	12	5.5	1.05	C753	$12.06
0.56	6	19	11	0.07	C772	$10.03
1.6	11.7	60	20	0.36	C774	$14.06
1	12.3	60	14	0.06	C775	$12.06
2	27	56	10.5	0.12	C779	$16.06
5.6	36	78	9	5.05	C780	$30.12
1.4	10	85	25	0.27	C782	$14.06
1	15	18	5	0.12	C787	$12.06
0.9	7.4	50	18.5	0.15	C791	$12.06
3.55	29.5	80	11.5	0.97	C829	$18.07
2	19	100	12.5	0.31	C900	$16.06
1.6	16	95	15	0.17	C901	$14.06
1.4	16	70	12.5	0.12	C902	$14.06
1.4	13.5	50	12	0.22	C903	$14.06
1.25	12.7	57	12	0.16	C904	$12.06
1.25	11	57	16	0.19	C905	$12.06
0.9	11	76	25	0.03	C906	$12.06
0.9	9.5	67	20	0.06	C907	$12.06
0.9	9.5	32	11	0.12	C908	$12.06
0.71	7.9	44	15	0.05	C909	$10.03
0.56	7.9	76	23	0.01	C910	$10.03
0.5	4.7	38	18	0.05	C911	$10.03
2	12.7	150	37	0.38	C912	$16.06
2	16	180	36	0.17	C913	$16.06
2.24	16	180	35	0.3	C914	$16.06
2.24	19	200	35	0.16	C915	$16.06
2.5	19	200	34	0.27	C916	$16.06
2.5	22	200	24	0.24	C917	$16.06
2.8	25.4	200	24	0.24	C918	$18.07
3.15	25.4	200	25	0.39	C919	$18.07
3.15	28.5	200	23	0.29	C920	$18.07
3.55	31.8	230	19	0.42	C921	$18.07
4	31.8	200	21	0.63	C922	$20.08
4	35	230	22	0.43	C923	$20.08
