Zinc Plated Tension Springs

Material Type: Spring Steel
Range 2. Eye Each End

More technical information can be found here

Can’t find the size you want? Get a quote here

$27 Flat-rate Delivery & Handling

Click on table headings to sort items in ascending/descending order
*Values are approximate (where applicable)

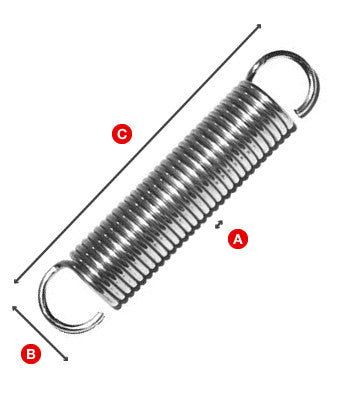

A Wire	B O/D	C Overall Length	KG/mm*	Part Number	Price	Qty
2.5	19	120	0.27	T531	$16.06
2.5	19	80	0.52	T532	$16.06
2.8	20	100	0.58	T533	$18.07
3.15	25.4	150	0.29	T534	$18.07
3.15	25.4	100	0.56	T535	$18.07
0.45	4.7	25	0.04	T658	$10.03
0.56	5.5	50	0.01	T660	$10.03
0.61	6.3	40	0.02	T661	$10.03
0.61	8	40	0.01	T662	$10.03
0.71	8	40	0.02	T663	$10.03
0.71	8	60	0.01	T664	$10.03
0.9	8	35	0.06	T665	$12.06
0.9	8	50	0.05	T666	$12.06
1	7	50	0.13	T667	$12.06
1	8.5	120	0.02	T668	$12.06
1.25	7.4	40	0.53	T669	$12.06
2.24	16	120	0.25	T670	$16.06
1.4	12.7	50	0.15	T671	$14.06
1.8	12.7	80	0.27	T672	$14.06
2	19	200	0.04	T673	$16.06
2.24	16	80	0.45	T530	$16.06
2	20	60	0.25	T674	$16.06
2	20	100	0.09	T675	$16.06
3.55	30	120	0.51	T676	$18.07
3.55	30	160	0.31	T677	$18.07
3.55	30	200	0.22	T678	$18.07
4	30	150	0.64	T679	$20.08
4	30	200	0.42	T680	$20.08
4	30	250	0.31	T681	$20.08
4.5	30	150	1.25	T682	$20.08
4.5	30	200	0.81	T683	$20.08
4.5	35	250	0.36	T684	$20.08
5	40	200	0.61	T685	$30.12
5	40	250	0.43	T686	$30.12
5	40	300	0.33	T687	$30.12
5.6	45	200	0.81	T688	$30.12
5.6	45	250	0.56	T689	$30.12
5.6	45	300	0.43	T690	$30.12
1.6	11.5	400	0.03	T726	$14.06
3.15	25.4	220	0.17	T727	$15.71
2.5	12.4	250	0.45	T728	$13.97
0.8	6.8	35	0.07	T754	$10.48
0.8	7.6	31	0.07	T755	$10.48
1.6	11	55	0.38	T756	$12.22
1	7	77	0.07	T757	$10.48
1.25	7.4	67	0.25	T759	$10.48
0.8	8	51	0.03	T760	$10.48
1	8.5	107	0.03	T761	$10.48
2	16	40	1.47	T762	$13.97
2	17.5	120	0.1	T766	$13.97
2.5	25	320	0.03	T767	$13.97
2	26	185	0.02	T768	$13.97
2	20	230	0.03	T770	$13.97
2	15	385	0.04	T771	$13.97
2.5	20	375	0.05	T796	$13.97
0.71	12.5	150	0.01	T826	$8.72
0.61	6.3	29	0.03	T827	$8.72
0.9	11	85	0.01	T924	$10.48
0.9	11	100	0.01	T925	$10.48
1.6	14.5	130	0.05	T926	$12.22
1.8	12.7	145	0.12	T927	$12.22
1.4	12.7	125	0.04	T928	$12.22
1.4	12.7	90	0.06	T929	$12.22
1.25	11	100	0.04	T930	$10.48
0.9	8.7	80	0.02	T931	$10.48
0.9	8.7	96	0.02	T932	$10.48
0.8	7.2	87	0.02	T933	$10.48
0.8	7.2	64	0.09	T934	$10.48
0.56	5.5	62	0.1	T935	$8.72
0.56	5.5	37	0.02	T936	$8.72
0.45	4.7	47	0.01	T937	$8.72
2.8	25.4	202	0.1	T938	$15.71
2.8	22	196	0.16	T939	$15.71
2.5	22	196	0.09	T940	$13.97
2.5	19	188	0.15	T941	$13.97
2.24	19	188	0.08	T942	$13.97
2.24	16	184	1.14	T943	$13.97
2	19	186	0.04	T944	$13.97
2	16	184	0.08	T945	$13.97
2	14	180	0.12	T946	$13.97
1.8	12.7	177	0.1	T947	$12.22
1.6	12.7	177	0.05	T948	$12.22
1.6	9.5	170	0.14	T949	$12.22
